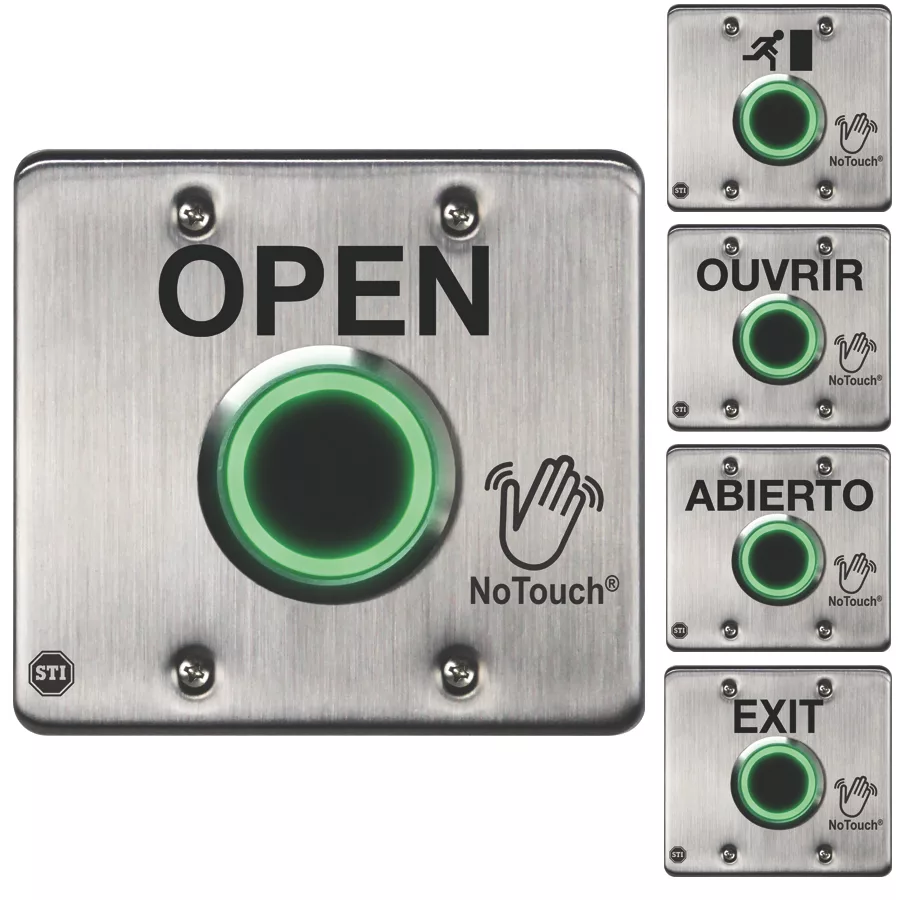

STI’s double-gang NoTouch stainless steel button helps eliminate the spread of germs in hospitals, clinics, labs, cleanrooms, schools, department stores, factories, offices or any public building with high traffic areas. To exit or enter a building without touching the door, users must simply wave their hands in front of the touchless button. The infrared will detect the motion and unlatch the time adjustable door. NoTouch IR switch is constructed of medical/food grade 304 stainless steel and has a Form “C” dry contact, 0.5A @120VAC, 1A @24VDC. It has an integrated adjustable timer 0.5~20 seconds, 12-24 VDC, 45mA (maximum), dual color status LED (green/red or red/green), and a 1.5~6-in. detection range. The button is available with operating instruction options: OPEN, EXIT or a door symbol.

STI | www.sti-usa.com
