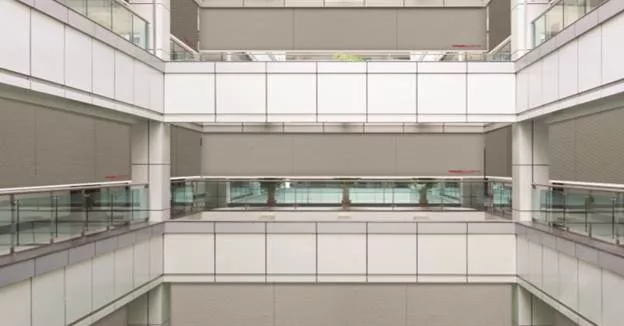

SmokeShield Fabric Smoke and Fire is a fire safety closure designed to enhances life safety by compartmentalizing dangerous fire and smoke at the first hint of smoke. Engineered to enclose atrium areas, corridors or other openings in fire barrier and smoke barrier walls, it may be employed as supplemental fire and smoke protection for use in both new construction and retrofit projects to enhance and balance the overall scope of fire and smoke protection. The closure features a lightweight textile construction that has an extremely small footprint. Guides may be easily recessed into jambs and concealed by wood, masonry, sheetrock or other fascia materials. SmokeShield Fabric Smoke and Fire is engineered with GuideLock technology that positively seals the curtain within the guide channels, preventing smoke and fire from migrating throughout a building. A battery back-up prevents curtain deployment during power interruptions. The fire door is UL tested and listed as a UL10D three-hour fire protective and features a UL1784 smoke and air infiltration listing. UL10 effectively directs that the curtain can withstand one to four hours of fire at 2,000 deg. F. SmokeShield Fabric Smoke and Fire meets the criteria of the International Building Code (IBC) Table 716.1(2), sections 716.2 and 716.4. These codes assert that the product has a minimum fire protection rating of 20 minutes.
