Voltage Regulator & Power Distribution Module

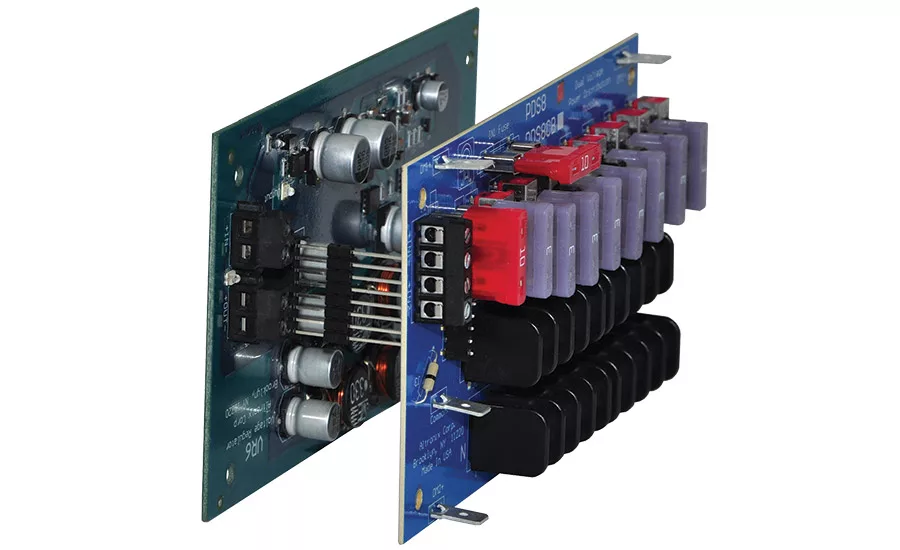

Altronix expanded its line of power management solutions with the introduction of the VR6 Voltage Regulator and the PDS8 Dual Input Power Distribution Module. The voltage regulator reduces the cost of adding another power supply and snaps together with the dual input power distribution module via common standoffs, saving valuable enclosure space to provide 5VDC or 12VDC and 24VDC simultaneously — individually selectable over each of the eight outputs. The VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC output and offers surge suppression. It features a 24VDC input at 1.75A with an output of 5VDC at 6A, and a 24VDC input with 12VDC output at 6A. The PDS8 Dual Input Power Distribution Module features eight fuse-protected power outputs that are selectable to follow input 1 or input 2. It provides 5VDC to 24VDC up to 10A, or 16VAC to 28VAC up to 14A.
