SECO-LARM Counter Is Easy to Program

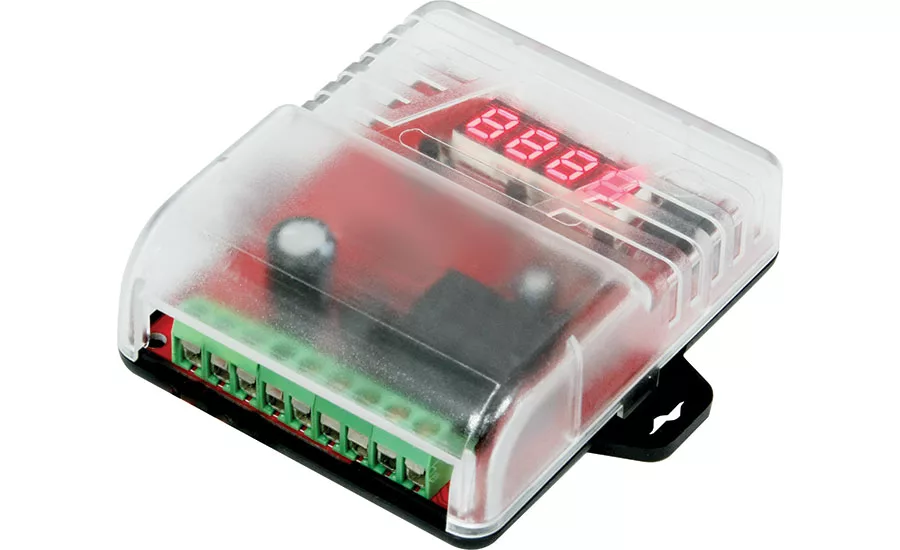

The multi-function timer/counter (SA-025MQ) by SECO-LARM U.S.A. features 12~24VDC (auto-sensing) operation, low current draw and seven modes. It is easily programmable with push buttons and LED display (auto door or gate closure, guard timer, pulse extender/false trigger avoidance, timed relay output, timed pulse relay output, input counter and input timer). The timer can be set to trigger a notification (red LED and/or buzzer) and/or a Form C relay output (10A@24VDC). The timer can be set from 1 sec. ~11hours, 59 min., can be triggered by N.O. pos. (+) or N.C. neg. (–) input or by powering up the unit. Relay can be programmed to trigger at the start or end of the timing cycle, or to toggle. Relay can be programmed to pulse (0.5 sec. on/0.5 sec. off) or steady on (1 sec.~11hours 59 min.). Includes reset input (N.O.–) to manually reset cycle.
SECO-LARM // www.seco-larm.com
