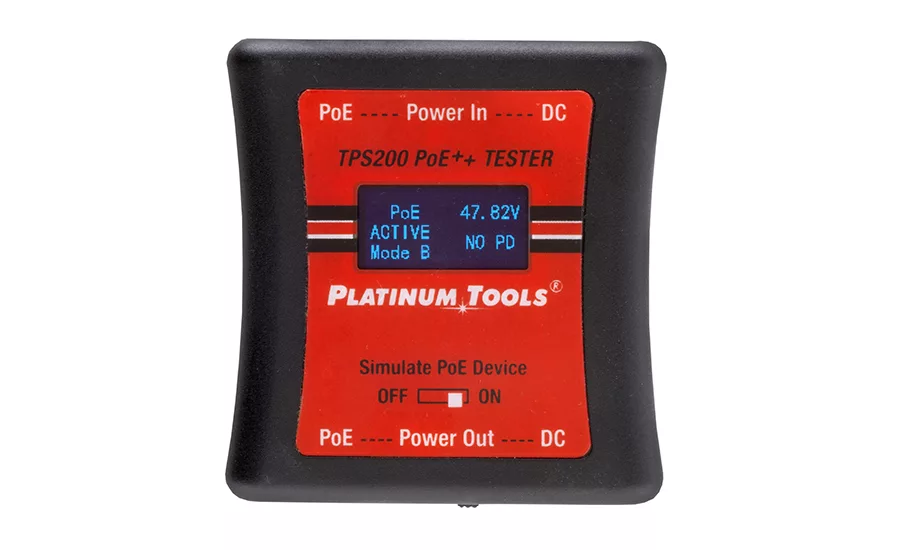

The pocket-sized TPS200C PoE++ tester has been designed for all varieties of PoE, up to 56 volts and 280 watts of power. Powered by the PoE circuit, the TPS200C requires no batteries and can be used inline with an actual PoE device to measure current flow, or by itself in Powered Device Simulation mode to determine the maximum power available from the PoE power source. Additional, it tests up to four-pair PoE (IEEE 802.3bt Type 3); it has an easy-to-read, bright, scrolling OLED display; it tests PoE on active data cables without interrupting data flow; it has an automatic mode and polarity detection; It features dual RJ45 ports for testing PoE and dual 2.1x5.5mm DC jacks for testing DC power supplies; it includes 2.1x5.5mm DC patch cable; its dimensions are 2.50 in. square x 1 in. thick; and it weighs 2oz.
