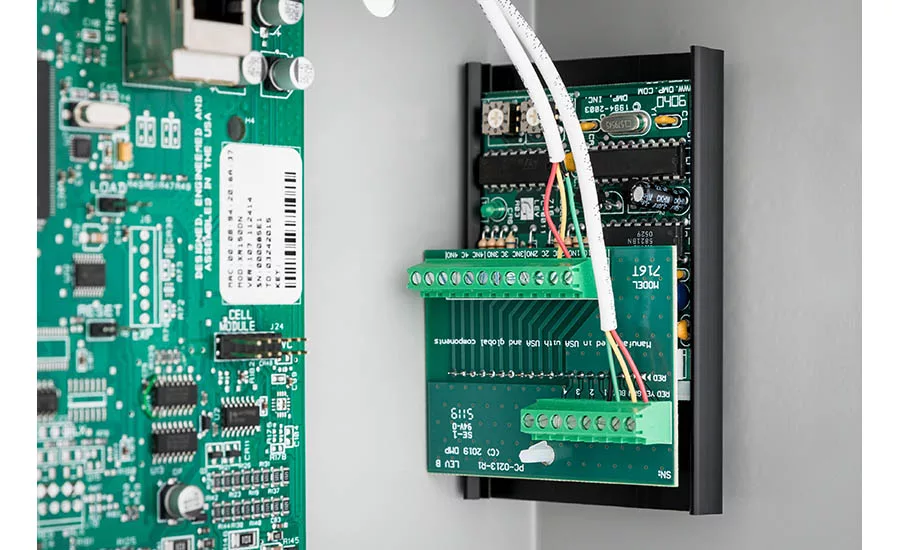

The 716T terminal strip is a plug-in screw terminal option that replaces the standard wiring harness with the 716 output expansion module. Compared to flying leads, the new terminal strip simply plugs into the output expansion module header to provide a screw-type terminal for wire connections. Your order comes with all the required hardware for snap-track housing that attaches to the panel enclosure. The 716 output expansion module provides four independently programmable Form C (SPDT) relays and four zone‐following annunciator outputs for use on XR150/XR550 series panels. The module connects to the panel LX‐Bus. In addition to the panel onboard Form C relays, you can connect multiple modules to the panel for unique auxiliary relays and annunciator outputs, one per zone.
